You need to correctly size the fuse for your solar panel string to ensure it's safe but doesn't have nuisance trips. The problem is that just using the panel's operating current is incorrect and unsafe. The proper solution is to use a code-compliant formula based on the panel's Short Circuit Current (Isc), which is found on its datasheet. The standard NEC and IEC formula is: Fuse Amperage ≥ Isc x 1.25 x 1.25, which simplifies to Isc x 1.56. After calculating this value, you round up to the next standard solar fuse size. GFEFUSE offers a wide range of standard amperage ratings (e.g., 10A, 15A, 20A, 25A, 30A) to match your calculation perfectly.

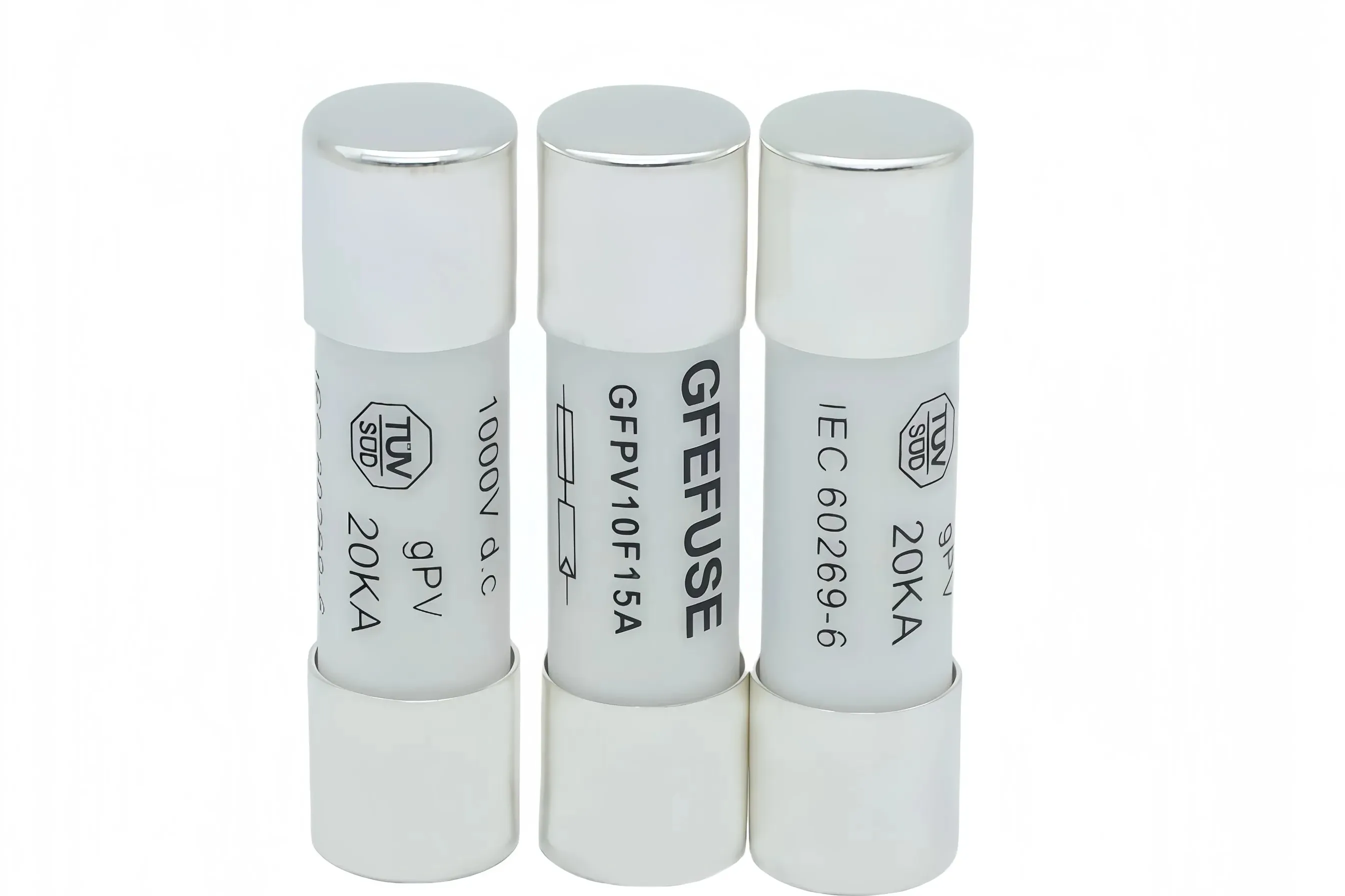

You've encountered the "gPV" marking on a fuse and need to understand its critical importance for your solar project. The problem is that this technical standard isn't self-explanatory. "gPV" is the IEC designation for a fuse designed for Photovoltaic applications that provides full-range protection. The solution is simple: if you are fusing a solar string, electrical codes and safety standards mandate the use of a gPV fuse. A GFEFUSE gPV-rated solar fuse provides the guarantee that the device has been independently tested and certified to safely handle the complete range of solar faults, from minor reverse currents to massive short circuits at 1000V or 1500V DC.

You are rightly concerned about the danger of a shaded panel in a solar string, which can cause a hazardous reverse current situation. The problem is that this sustained, low-level current can cause the shaded panel to severely overheat, creating a significant fire risk that a standard fuse would not detect. The only certified solution is to install a purpose-built solar fuse with a "gPV" rating on each string. A GFEFUSE solar fuse is specifically engineered to be highly sensitive to these dangerous reverse currents. It will safely open the circuit and isolate the faulty string long before a dangerous temperature can be reached, effectively neutralizing the threat and protecting your entire solar array.

When you're troubleshooting a dead string in a solar array, the problem could be a faulty panel or a wiring issue, but before you start climbing on the roof, there's a much simpler first step. The solution is to go directly to the solar combiner box. Inside, each string is protected by a solar fuse. In many cases, a fault will have caused this fuse to blow, safely disconnecting the string. Checking the fuse (either visually, with an indicator, or with a multimeter) is the fastest way to begin your diagnosis. A blown GFEFUSE solar fuse has done its job perfectly; your task is now to find the cause of the fault it protected you from.
