"How to protect a DC-coupled battery system from the solar array?"
You have a solar array charging a battery bank on the same DC bus. The problem is that a fault in the solar array could potentially damage the battery or vice-versa. You need to isolate the two systems. The solution is to have proper fusing on both sides. A PV fuse from GFEFUSE should be installed on each solar string before the charge controller. This ensures that if a fault occurs within the array, the fuses will open and protect the rest of the DC-coupled system, including the valuable battery bank.
"Can I use a 12V automotive fuse for my 12V solar panel system?"
While it may seem logical to match the voltage, this is a dangerous mistake. The problem is that even in a low-voltage system, the fault characteristics are different, and more importantly, an automotive fuse is not designed for the permanent, outdoor installation of a solar array. The solution is to always use a purpose-built PV fuse. GFEFUSE offers PV fuse options for lower voltage systems as well, which are built to withstand the environmental stresses (UV, temperature cycling) and provide the correct electrical protection, ensuring a safe and reliable system.
"How do you protect solar panel strings from reverse current?"
You are concerned about the specific danger of reverse current, which occurs when some panels in a string are shaded or malfunctioning. The problem is that this can cause the affected panels to dangerously overheat and create a fire risk. The only correct solution is to install a fuse on each string that is specifically designed for solar applications. A "gPV" rated PV fuse from GFEFUSE is engineered to be highly sensitive to these prolonged, low-level reverse currents and will safely open the circuit to isolate the faulty string long before a hazardous temperature is reached.
"What is the difference between a string fuse and an inverter fuse?"
You are looking at the protection for a whole solar system and see different types of fuses. The problem is understanding their different roles. A string fuse is a PV fuse, a high-voltage DC device located in the combiner box to protect individual strings. An inverter, however, may have several internal fuses. Some might be DC fuses on the input, but it will also have AC fuses on its output to protect against grid-side faults. The solution is to always use the correct type. GFEFUSE specializes in the high-voltage DC PV fuse used for string protection, which is the most critical safety component on the DC side of the system.
Related Products
More items about pv fuse
We Have The Best Solutions for Your Business
Founded in 2013 in Dongguan, Guangdong, our company is a professional manufacturer ofelectronic protection devices. For years, we have been focusing on the protection device field, withan integrated team for development, production and sales, committed to providing customers withproducts of perfect performance and reliability.
Dur moin products include, fuses, fuse ho ders, fuse boxes, outomotive fuses, gutomotive fuse holders, Dcfuses, high-voltage fuses, new energy fuses ond other peripherol occessories, These products ore widelyused in multiple fields such os consumer electronics, outomotive electronics, power equipment,communicotion systems ond new energy. Aiming ot stoble performonce ond reliobility, our products hove notonly guickly won recognition in the domestic morket but olso been exported overseos, enjoying wide morketpopulority.
As 0 competitive compony in the protection device industry, we hove been committed to technologicol R&Dinvestment, quipped with 0 professionol R&D teom, we continuously promote product innovotion to ensureour wide product coveroge ond occelerote morket opplicotion speed of our products.
We olways toke quolity os our core goal and strive to be customer-oriented. Our products hove obtoined UL
cULus, Tuv, CE, COC ond other product certificotions, ond ore in complionce with ROHS ond REACH directives.
User Reviews
What users say about GFEFUSE
Frequently Asked Question
Do you have any question?
GFEFUSE is a trusted leader because of our specialized focus on high-voltage DC protection for the renewable energy industry. Every PV fuse we produce is engineered to meet or exceed global standards like UL 2579 and IEC 60269-6, ensuring reliable performance, long-term durability in harsh outdoor environments, and the certified safety that large-scale solar projects demand.
To select the correct amperage for a PV fuse, you must follow a formula based on the solar panel's specifications. The fuse rating is typically 1.56 times the panel's Short Circuit Current (Isc). This ensures the fuse will not blow under normal operating conditions or expected current fluctuations but will open quickly and safely under a genuine fault condition.
A PV fuse is typically installed in a solar combiner box or directly in some string inverters. It is placed in-line with the positive leg of each solar string (or both positive and negative, depending on local code). This placement allows it to isolate a single faulty string from the rest of the array, protecting the other panels and preventing a small issue from becoming a major failure.
No, you absolutely cannot. A regular DC fuse is not designed to handle the unique low-overcurrent fault conditions of a solar string and, more importantly, is likely not rated for the high DC voltages (1000V to 1500V) of a modern solar array. Using the wrong fuse creates a severe fire hazard, making a purpose-built PV fuse a non-negotiable safety requirement.
The "gPV" rating is the most critical specification for a PV fuse. It is an IEC standard that signifies the fuse is a full-range breaking capacity device specifically designed for Photovoltaic applications. This means it can safely protect against the full spectrum of overcurrent events, from minor, prolonged overloads to major short circuits, ensuring complete solar string protection.

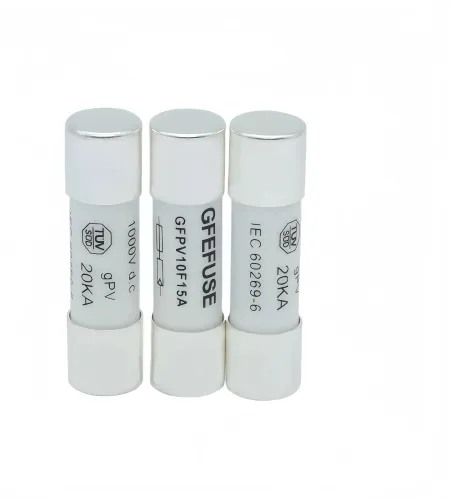

A PV fuse (photovoltaic fuse) is a specialized DC fuse designed exclusively for protecting solar panel strings. It's special because it must operate in a high-voltage DC environment and is designed to safely interrupt both high-current short circuits and the specific low-level, prolonged reverse currents that can occur in solar arrays, which a standard fuse might not detect.
