"How do I protect the IGBTs in my Variable Frequency Drive (VFD)?"
You are trying to safeguard the most critical and expensive components in your VFD: the IGBTs. The problem is that these semiconductors can be destroyed by a short circuit in microseconds, far faster than a standard fuse or circuit breaker can react. The only correct solution is to use an ultra-fast-acting high speed fuse (also called a semiconductor fuse). A GFEFUSE high speed fuse is specifically designed with an extremely low I²t rating, ensuring it opens the circuit and limits the destructive energy before the IGBT's withstand limit is reached, providing essential protection for your drive.
"Finding a replacement for a square body semiconductor fuse."
Your industrial machinery is down, and you've identified a blown square body fuse with specific part numbers and ratings. The problem is that these are highly specialized components, and you need an exact or approved cross-reference to get your equipment running safely. The solution is to work with a specialized manufacturer. GFEFUSE manufactures a complete line of industry-standard square body high speed fuse products. Our technical support team can help you cross-reference the part you need, ensuring you get a high-quality replacement with the correct voltage, amperage, and, most importantly, I²t characteristics to safely protect your equipment.
"How to protect a DC power supply or rectifier?"
You need to protect the output of a DC power supply or the diodes within a rectifier. The problem is that these components are highly susceptible to damage from downstream short circuits. Because the output is DC, you need a fuse rated for DC voltage and one that is fast enough to protect the solid-state components. The best solution is a high speed fuse with a DC rating that is equal to or greater than your system voltage. GFEFUSE offers a wide range of high speed fuse products with high DC voltage ratings, making them the ideal choice for protecting the output of rectifiers and safeguarding your DC power systems.

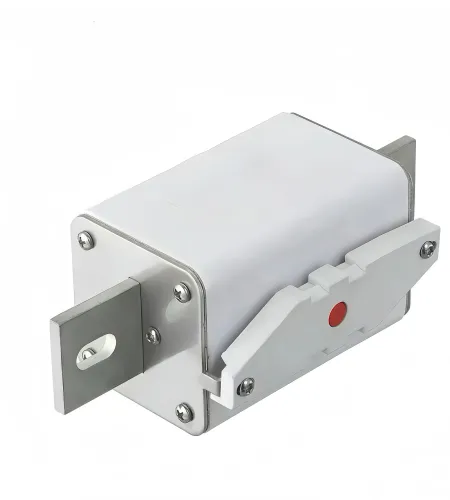

"Understanding the visual indicator on a high speed fuse."
You are looking at a square body fuse and see a small pop-up button or a discolored window. The problem is understanding what this feature does. This is a blown fuse indicator. When the high speed fuse operates, a small internal plunger is released, which can either pop up to provide a local visual indication or, more commonly, activate a microswitch mounted on the fuse block. The solution is to use this feature for remote monitoring. By wiring the microswitch to a PLC or an indicator light, you can get an immediate remote signal that the GFEFUSE high speed fuse has operated, dramatically speeding up diagnostics and reducing downtime.
Related Products
More items about high speed fuse
We Have The Best Solutions for Your Business
Founded in 2013 in Dongguan, Guangdong, our company is a professional manufacturer ofelectronic protection devices. For years, we have been focusing on the protection device field, withan integrated team for development, production and sales, committed to providing customers withproducts of perfect performance and reliability.
Dur moin products include, fuses, fuse ho ders, fuse boxes, outomotive fuses, gutomotive fuse holders, Dcfuses, high-voltage fuses, new energy fuses ond other peripherol occessories, These products ore widelyused in multiple fields such os consumer electronics, outomotive electronics, power equipment,communicotion systems ond new energy. Aiming ot stoble performonce ond reliobility, our products hove notonly guickly won recognition in the domestic morket but olso been exported overseos, enjoying wide morketpopulority.
As 0 competitive compony in the protection device industry, we hove been committed to technologicol R&Dinvestment, quipped with 0 professionol R&D teom, we continuously promote product innovotion to ensureour wide product coveroge ond occelerote morket opplicotion speed of our products.
We olways toke quolity os our core goal and strive to be customer-oriented. Our products hove obtoined UL
cULus, Tuv, CE, COC ond other product certificotions, ond ore in complionce with ROHS ond REACH directives.
User Reviews
What users say about GFEFUSE
Frequently Asked Question
Do you have any question?
GFEFUSE is a trusted expert because we specialize in the advanced material science and precision engineering required for these components. We design every high speed fuse with pure silver elements and advanced arc-quenching techniques to guarantee extremely low I²t values and consistent, reliable performance, all validated by rigorous testing and global certifications.
Yes. Common styles include the large "square body" or "cube body" high speed fuse, which is common in high-power industrial equipment. Other styles include bolted-tag (blade style) and ferrule (cartridge style) bodies for different mounting requirements and current ratings.
These are IEC fuse classes that define the operating characteristics. "aR" class fuses provide extremely fast, short-circuit protection only (partial range). "gR" and "gS" class fuses also provide extremely fast short-circuit protection but are full-range devices, meaning they also protect against lower-level overload currents. The choice depends on the specific protection needs of the circuit.
I²t (pronounced "I squared t") represents the thermal energy of a fault current. The fuse's clearing I²t value must be lower than the semiconductor's withstand I²t rating. This is the most critical coordination parameter: it ensures that the high speed fuse will absorb the destructive energy and blow before the semiconductor it is protecting is damaged.
Variable Frequency Drives (VFDs), inverters, and solid-state rectifiers use semiconductor devices (like IGBTs) that have very little thermal mass and can be destroyed by overcurrent in less than a millisecond. A high speed fuse is the only type of protective device fast enough to interrupt the fault current before it can damage these critical components.
A high speed fuse, also known as a semiconductor fuse, is an ultra-fast-acting fuse designed to protect sensitive power electronic devices. It differs from a standard fuse by having an extremely low I²t value, meaning it opens the circuit in microseconds during a major fault, limiting the total destructive energy let-through to protect the semiconductor.
