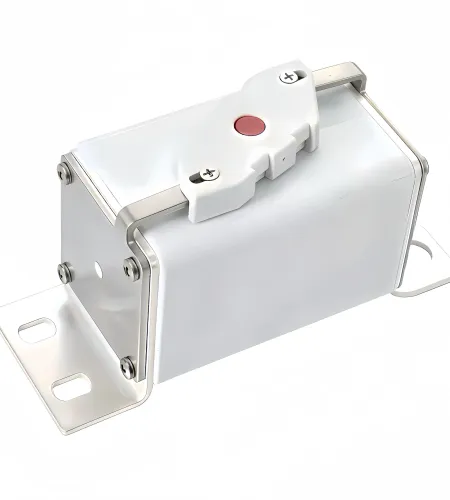

GFEFUSE Delivers the Ultimate Protection with Our 1500V Solar Fuse.

You are an installer or engineer working in North America, and you know that passing the final electrical inspection is a critical, non-negotiable step. The problem is that the Authority Having Jurisdiction (AHJ) will fail any installation that uses non-listed components in the DC combiner box. You must use a UL-listed component. The solution is to source your fuses from a compliant manufacturer. GFEFUSE offers a complete line of solar fuse products that are UL 2579 Listed. This certification provides the proof of safety and compliance needed to ensure your installation is professional, safe, and will pass inspection the first time.

You need to correctly size the fuse for your solar panel string to ensure it's safe but doesn't have nuisance trips. The problem is that just using the panel's operating current is incorrect and unsafe. The proper solution is to use a code-compliant formula based on the panel's Short Circuit Current (Isc), which is found on its datasheet. The standard NEC and IEC formula is: Fuse Amperage ≥ Isc x 1.25 x 1.25, which simplifies to Isc x 1.56. After calculating this value, you round up to the next standard solar fuse size. GFEFUSE offers a wide range of standard amperage ratings (e.g., 10A, 15A, 20A, 25A, 30A) to match your calculation perfectly.

You are wiring a combiner box and are unsure if you need one fuse or two per string. The problem is that electrical codes and best practices can vary. In North America (NEC), for most ungrounded systems, it is required to have a solar fuse on both the positive and negative conductors of each string. This provides complete isolation during a fault. In other regions, only fusing the positive conductor may be common. The correct solution is to always consult your local electrical code and the inverter manufacturer's requirements. GFEFUSE provides the necessary solar fuse and multi-pole holders to build a compliant system, whether you need single-pole or double-pole protection.

You are rightly concerned about the danger of a shaded panel in a solar string, which can cause a hazardous reverse current situation. The problem is that this sustained, low-level current can cause the shaded panel to severely overheat, creating a significant fire risk that a standard fuse would not detect. The only certified solution is to install a purpose-built solar fuse with a "gPV" rating on each string. A GFEFUSE solar fuse is specifically engineered to be highly sensitive to these dangerous reverse currents. It will safely open the circuit and isolate the faulty string long before a dangerous temperature can be reached, effectively neutralizing the threat and protecting your entire solar array.
