"Understanding the visual indicator on a high speed fuse."

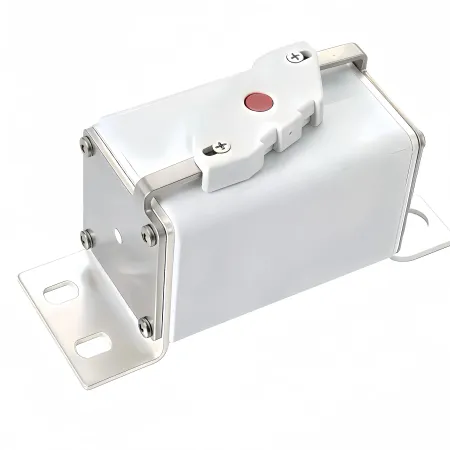

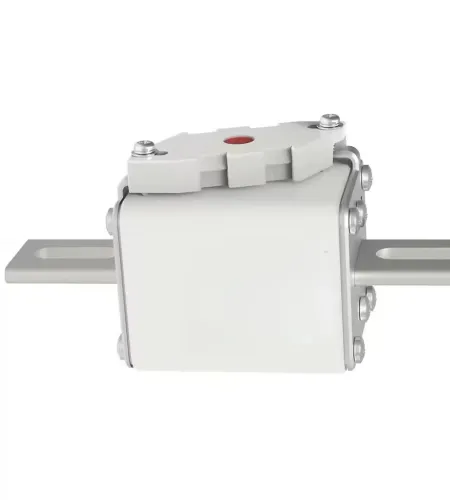

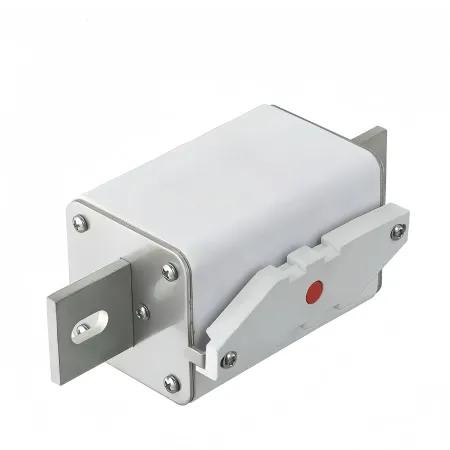

You are looking at a square body fuse and see a small pop-up button or a discolored window. The problem is understanding what this feature does. This is a blown fuse indicator. When the high speed fuse operates, a small internal plunger is released, which can either pop up to provide a local visual indication or, more commonly, activate a microswitch mounted on the fuse block. The solution is to use this feature for remote monitoring. By wiring the microswitch to a PLC or an indicator light, you can get an immediate remote signal that the GFEFUSE high speed fuse has operated, dramatically speeding up diagnostics and reducing downtime.
"My VFD's DC bus fuse has blown. What should I replace it with?"
You've opened a variable frequency drive and found a blown fuse on the internal DC bus. The problem is that this is a critical link between the rectifier and the inverter section, and it requires a very specific type of fuse. You must replace it with a high speed fuse with the correct DC voltage rating and I²t value. Using a standard fuse here would be catastrophic for the drive's IGBTs on the next fault. The solution is to source a direct replacement from a reputable manufacturer like GFEFUSE, ensuring the continued protection of the drive's most expensive components.
"Do I need a fuse on the input of my AC drive?"
Yes, you absolutely need protection on the input of your VFD or AC drive. The problem is that a major internal fault in the drive (like a rectifier failure) can cause a short circuit that draws massive current from the AC line. The solution is to install a high speed fuse on each input phase. This not only protects the drive itself but also prevents the fault from propagating upstream and damaging other equipment or causing a dangerous arc flash event. A GFEFUSE high speed fuse is essential for meeting safety codes (like UL 508A) and ensuring a safe installation.
"How to protect a DC power supply or rectifier?"
You need to protect the output of a DC power supply or the diodes within a rectifier. The problem is that these components are highly susceptible to damage from downstream short circuits. Because the output is DC, you need a fuse rated for DC voltage and one that is fast enough to protect the solid-state components. The best solution is a high speed fuse with a DC rating that is equal to or greater than your system voltage. GFEFUSE offers a wide range of high speed fuse products with high DC voltage ratings, making them the ideal choice for protecting the output of rectifiers and safeguarding your DC power systems.
Related Products

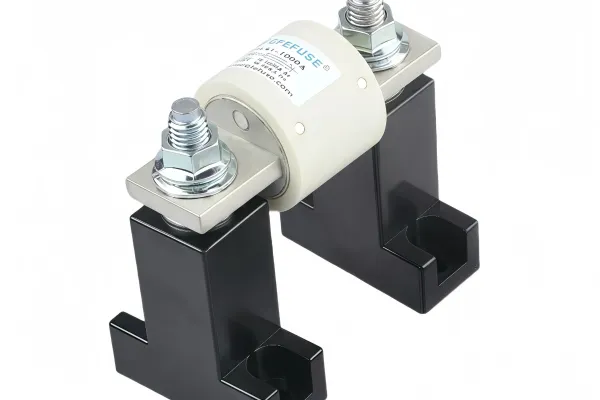

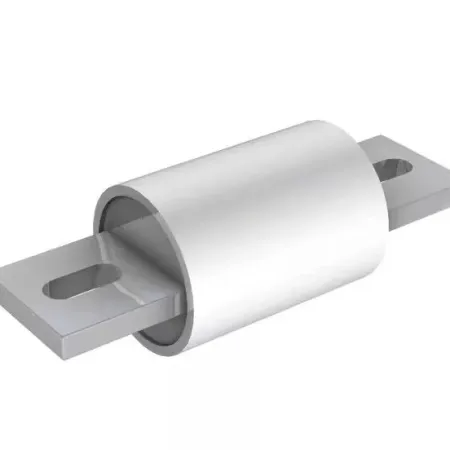

More items about high speed fuse
We Have The Best Solutions for Your Business
Founded in 2013 in Dongguan, Guangdong, our company is a professional manufacturer ofelectronic protection devices. For years, we have been focusing on the protection device field, withan integrated team for development, production and sales, committed to providing customers withproducts of perfect performance and reliability.
Dur moin products include, fuses, fuse ho ders, fuse boxes, outomotive fuses, gutomotive fuse holders, Dcfuses, high-voltage fuses, new energy fuses ond other peripherol occessories, These products ore widelyused in multiple fields such os consumer electronics, outomotive electronics, power equipment,communicotion systems ond new energy. Aiming ot stoble performonce ond reliobility, our products hove notonly guickly won recognition in the domestic morket but olso been exported overseos, enjoying wide morketpopulority.
As 0 competitive compony in the protection device industry, we hove been committed to technologicol R&Dinvestment, quipped with 0 professionol R&D teom, we continuously promote product innovotion to ensureour wide product coveroge ond occelerote morket opplicotion speed of our products.
We olways toke quolity os our core goal and strive to be customer-oriented. Our products hove obtoined UL
cULus, Tuv, CE, COC ond other product certificotions, ond ore in complionce with ROHS ond REACH directives.
User Reviews
What users say about GFEFUSE
Frequently Asked Question
Do you have any question?
GFEFUSE is a trusted expert because we specialize in the advanced material science and precision engineering required for these components. We design every high speed fuse with pure silver elements and advanced arc-quenching techniques to guarantee extremely low I²t values and consistent, reliable performance, all validated by rigorous testing and global certifications.
Yes. Common styles include the large "square body" or "cube body" high speed fuse, which is common in high-power industrial equipment. Other styles include bolted-tag (blade style) and ferrule (cartridge style) bodies for different mounting requirements and current ratings.
These are IEC fuse classes that define the operating characteristics. "aR" class fuses provide extremely fast, short-circuit protection only (partial range). "gR" and "gS" class fuses also provide extremely fast short-circuit protection but are full-range devices, meaning they also protect against lower-level overload currents. The choice depends on the specific protection needs of the circuit.
I²t (pronounced "I squared t") represents the thermal energy of a fault current. The fuse's clearing I²t value must be lower than the semiconductor's withstand I²t rating. This is the most critical coordination parameter: it ensures that the high speed fuse will absorb the destructive energy and blow before the semiconductor it is protecting is damaged.
Variable Frequency Drives (VFDs), inverters, and solid-state rectifiers use semiconductor devices (like IGBTs) that have very little thermal mass and can be destroyed by overcurrent in less than a millisecond. A high speed fuse is the only type of protective device fast enough to interrupt the fault current before it can damage these critical components.
A high speed fuse, also known as a semiconductor fuse, is an ultra-fast-acting fuse designed to protect sensitive power electronic devices. It differs from a standard fuse by having an extremely low I²t value, meaning it opens the circuit in microseconds during a major fault, limiting the total destructive energy let-through to protect the semiconductor.
Our updates and blog posts

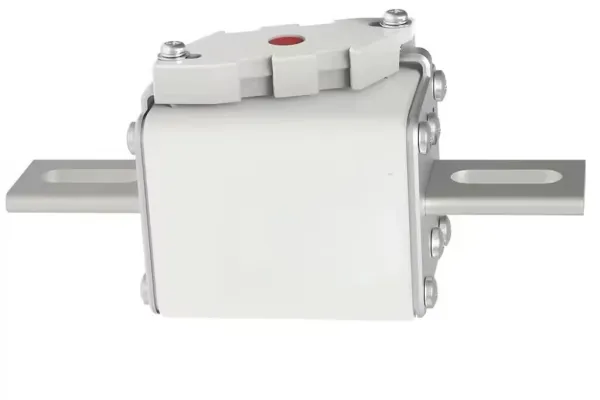

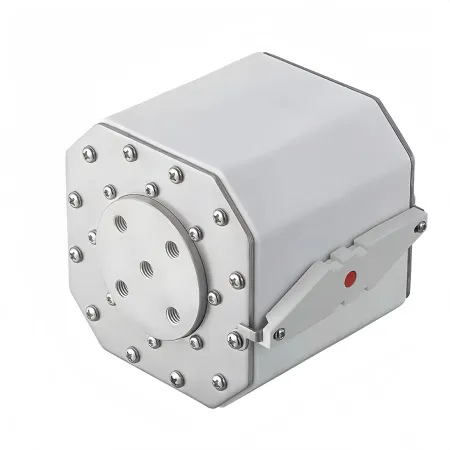

Square high speed fuse: The Ultimate 1500 V DC Guardian for Energy Storage & EV Systems
