"How do you protect an IGBT from a short circuit?"
You are trying to protect an Insulated Gate Bipolar Transistor (IGBT), a fast and powerful but very delicate semiconductor. The problem is that an IGBT can be destroyed by the thermal energy of a short circuit in a matter of microseconds. The only viable solution is to use an ultra-fast-acting semiconductor fuse. A GFEFUSE semiconductor fuse is specifically designed for this purpose, with a very low I²t value that ensures it will open the circuit and absorb the destructive energy long before the IGBT is damaged.
"Finding a fuse for a high-power industrial rectifier."
You need to protect the diodes or SCRs in a large industrial rectifier. The problem is that these rectifiers can have very high prospective fault currents on their DC output. The solution is to use a high-power, square body semiconductor fuse with a high interrupting capacity and a DC voltage rating appropriate for the system. GFEFUSE manufactures a complete line of these heavy-duty square body fuses, providing the robust protection needed for demanding industrial power conversion applications.
"Why did my VFD fail even though it had fuses?"
This is a common and costly problem. Your Variable Frequency Drive (VFD) failed, and you're discovering that the standard industrial fuses (like Class J or CC) you used did not protect it. The problem is that those fuses were far too slow. The solution requires understanding that you must use a proper semiconductor fuse. A GFEFUSE semiconductor fuse is designed to react in microseconds, while a standard fuse takes milliseconds. That difference in speed is the difference between saving your drive and destroying it.
"How to select a fuse based on an I²t rating?"
You need to perform a fuse coordination study using I²t values. The problem is knowing how to use the data correctly. The rule is simple: The clearing I²t of the fuse must be less than the withstand I²t of the semiconductor. The best practice solution is to choose a semiconductor fuse whose clearing I²t is no more than 75% of the semiconductor's rating, providing a safe margin. GFEFUSE provides all the necessary I²t data and expert support to help you perform this critical calculation and select the right semiconductor fuse.
Related Products
More items about semiconductor fuse
We Have The Best Solutions for Your Business
Founded in 2013 in Dongguan, Guangdong, our company is a professional manufacturer ofelectronic protection devices. For years, we have been focusing on the protection device field, withan integrated team for development, production and sales, committed to providing customers withproducts of perfect performance and reliability.
Dur moin products include, fuses, fuse ho ders, fuse boxes, outomotive fuses, gutomotive fuse holders, Dcfuses, high-voltage fuses, new energy fuses ond other peripherol occessories, These products ore widelyused in multiple fields such os consumer electronics, outomotive electronics, power equipment,communicotion systems ond new energy. Aiming ot stoble performonce ond reliobility, our products hove notonly guickly won recognition in the domestic morket but olso been exported overseos, enjoying wide morketpopulority.
As 0 competitive compony in the protection device industry, we hove been committed to technologicol R&Dinvestment, quipped with 0 professionol R&D teom, we continuously promote product innovotion to ensureour wide product coveroge ond occelerote morket opplicotion speed of our products.
We olways toke quolity os our core goal and strive to be customer-oriented. Our products hove obtoined UL
cULus, Tuv, CE, COC ond other product certificotions, ond ore in complionce with ROHS ond REACH directives.
User Reviews
What users say about GFEFUSE
Frequently Asked Question
Do you have any question?
GFEFUSE is a trusted expert because we specialize in the advanced engineering required for these devices. We utilize pure silver elements, sophisticated arc-quenching technology, and rigorous testing to guarantee every semiconductor fuse provides the ultra-fast performance and low I²t values needed to reliably protect the most sensitive and expensive power electronic components.
No, they are crucial for both AC and DC circuits. A semiconductor fuse is essential for protecting the input of an AC drive, the DC bus link inside the drive, and the output of DC power supplies and rectifiers. GFEFUSE offers a wide range of fuses with high AC and DC voltage ratings.
These are IEC designations for a semiconductor fuse. "aR" stands for "partial-range" protection, meaning it offers extremely fast protection against short circuits only and must be paired with another device for overload protection. "gS" or "gR" stands for "full-range" protection, meaning the fuse will safely open on both short circuits and lower-level overload currents.
The single most important specification is the clearing I²t rating. This value represents the total thermal energy the fuse lets through before it clears a fault. This fuse I²t value must be lower than the I²t withstand rating of the semiconductor being protected to ensure the fuse blows before the semiconductor is damaged.
You cannot use a regular fuse because it is far too slow. A semiconductor can be destroyed by thermal energy in less than a millisecond. A semiconductor fuse is designed to open the circuit in microseconds and, more importantly, to limit the peak current, preventing the destructive energy from ever reaching the component it protects.

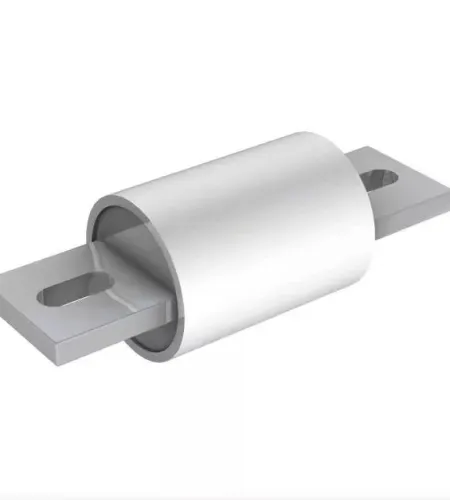

A semiconductor fuse is an extremely fast-acting, high-speed fuse designed to provide short-circuit protection for sensitive solid-state electronic devices, such as diodes, SCRs (Silicon Controlled Rectifiers), and IGBTs (Insulated Gate Bipolar Transistors), which are found in inverters, VFDs, and rectifiers.
