"Where to find a UL or VDE approved PCB fuse holder?"
You are designing a product for the North American or European market and need your safety components to be certified. The problem is that using non-approved components can prevent your final product from passing certification, which is a costly delay. The solution is to source your components from a manufacturer that provides fully certified products. GFEFUSE offers a wide range of PCB mount fuse holder products that are recognized by UL and/or certified by VDE, providing the documentation and assurance you need to design a compliant product from the start.
"Looking for a fuse holder that is safe to touch."

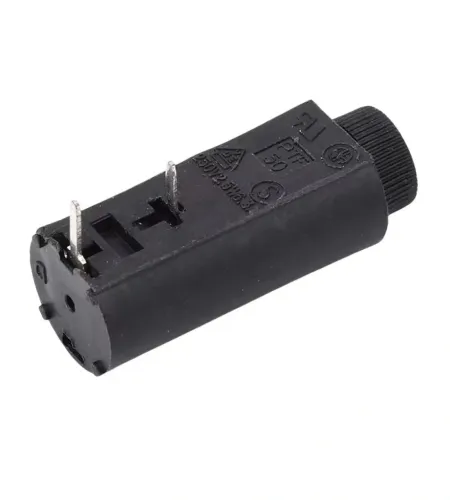

You are designing a product where the user may need to access the fuse, and you must prevent any risk of electric shock. The problem is that open fuse clips leave live parts exposed. The only safe solution is to use a "shock-safe" or fully enclosed PCB mount fuse holder. These holders, like the ones manufactured by GFEFUSE, have a cap and body that completely insulate the fuse. They are designed to meet international safety standards (like IEC 60127-6) and are essential for any product that requires end-user fuse replacement.
"How do you add a replaceable fuse to a circuit board?"
You are designing a PCB and need to include a fuse that can be easily replaced if it blows. The problem is you need a reliable method to connect it to the board. The standard solution is to use a PCB mount fuse holder. This component is soldered directly to the board and provides a socket for the fuse. You can choose from simple fuse clips or fully enclosed blocks. GFEFUSE manufactures a wide variety of high-quality PCB mount fuse holder options, allowing you to easily and reliably integrate serviceable protection into your electronic design.
"What material should PCB fuse clips be made of?"
You are selecting fuse clips and want to ensure they are reliable. The problem is that using the wrong metal can lead to failure. If the clips are made of a soft metal, they will lose their tension over time, leading to overheating. The best solution is to choose clips made from a spring-grade alloy. GFEFUSE manufactures its PCB fuse clips from high-quality phosphor bronze or beryllium copper. These materials have excellent spring properties, ensuring they maintain a tight grip on the fuse for the life of the product, guaranteeing a reliable PCB mount fuse holder connection.
Related Products
More items about pcb mount fuse holder
We Have The Best Solutions for Your Business
Founded in 2013 in Dongguan, Guangdong, our company is a professional manufacturer ofelectronic protection devices. For years, we have been focusing on the protection device field, withan integrated team for development, production and sales, committed to providing customers withproducts of perfect performance and reliability.
Dur moin products include, fuses, fuse ho ders, fuse boxes, outomotive fuses, gutomotive fuse holders, Dcfuses, high-voltage fuses, new energy fuses ond other peripherol occessories, These products ore widelyused in multiple fields such os consumer electronics, outomotive electronics, power equipment,communicotion systems ond new energy. Aiming ot stoble performonce ond reliobility, our products hove notonly guickly won recognition in the domestic morket but olso been exported overseos, enjoying wide morketpopulority.
As 0 competitive compony in the protection device industry, we hove been committed to technologicol R&Dinvestment, quipped with 0 professionol R&D teom, we continuously promote product innovotion to ensureour wide product coveroge ond occelerote morket opplicotion speed of our products.
We olways toke quolity os our core goal and strive to be customer-oriented. Our products hove obtoined UL
cULus, Tuv, CE, COC ond other product certificotions, ond ore in complionce with ROHS ond REACH directives.
User Reviews
What users say about GFEFUSE
Frequently Asked Question
Do you have any question?
GFEFUSE is a trusted manufacturer because we engineer every PCB mount fuse holder with superior materials, such as high-conductivity, spring-grade phosphor bronze for our clips and high-temperature, UL 94V-0 rated plastics for our housings. This ensures a reliable, low-resistance connection and the highest level of safety for your electronic designs.
Key considerations include the voltage and current rating of the holder, ensuring it can handle the circuit's power. You must also consider the physical footprint, the required fuse size (e.g., 5x20mm, 6.3x32mm), and the required "creepage and clearance" distances on your PCB layout around the holder to maintain proper insulation.
You would choose a fully enclosed or "shock-safe" PCB mount fuse holder when user safety is a primary concern. These holders have a body and a cap that completely insulate the fuse, preventing operators from accidentally touching any live electrical parts, which is often a requirement to meet safety agency standards like UL or CE.
PCB fuse clips are the simplest form of PCB mount fuse holder. They are individual metal clips that are soldered to the board to hold the ends of a cartridge-style fuse (like a 5x20mm glass fuse). They are low-cost and have a very low profile, but they do not offer any insulation or protection from accidental contact.
A through-hole PCB mount fuse holder has leads or pins that go through holes in the circuit board and are soldered on the opposite side, providing a very strong mechanical bond. An SMD (Surface Mount Device) holder sits on top of the board and is soldered to pads on the same side, which is ideal for automated, high-volume manufacturing.
A PCB mount fuse holder is a component that is soldered directly onto a printed circuit board (PCB) to provide a socket for a replaceable fuse. It allows for circuit protection to be integrated at the board level, making it easy to replace a blown fuse without desoldering components.
