"How to protect the main power feed in a custom car audio system?"
A powerful car audio system requires a heavy-gauge power wire running directly from the battery to the amplifiers. The problem is that this long, unfused wire is a major safety liability. If it were ever to short out against the car's chassis, it would create an immediate fire. The absolute rule of car audio safety is to install a main fuse as close to the battery as possible (typically within 18 inches). The ideal solution for this is an ANL-style bolt down fuse. A GFEFUSE ANL bolt down fuse and holder combination provides the clean, reliable, and high-current protection needed to keep your high-performance audio system both powerful and safe.
"My fuse terminal looks burnt and discolored. What happened?"
If the terminal or stud where your bolt down fuse is mounted appears burnt, blackened, or melted, you are seeing the direct result of a loose connection. The problem is that even a slightly loose nut creates a point of high electrical resistance. When hundreds of amps flow through this resistance, it generates an immense amount of heat, which can destroy the fuse, the holder, and surrounding wires. The solution is to always ensure the nuts on your bolt down fuse are tightened to the manufacturer's specified torque using a torque wrench. When replacing a damaged fuse and holder, choosing a high-quality GFEFUSE bolt down fuse with clean, precisely machined terminals will ensure you can achieve a solid, low-resistance connection that prevents this dangerous overheating.
"What does 'interrupting capacity' or 'AIC' mean for a fuse?"
When you see a rating like "2,000 AIC" (Ampere Interrupting Capacity) on a bolt down fuse, it's a critical safety specification. The problem is that in a high-power system with a large battery, a short circuit can unleash a massive, almost explosive amount of energy. The interrupting capacity tells you the maximum fault current the fuse can safely extinguish without rupturing or failing itself. The solution is to always choose a fuse with an AIC rating that exceeds the maximum potential short-circuit current of your system. GFEFUSE designs its bolt down fuse products with high interrupting capacities, making them a safe choice for robust battery systems where this rating is paramount.
"Where can I find a fuse for a commercial forklift or pallet jack?"
Electric materials handling equipment like forklifts and pallet jacks operate on powerful DC battery systems that require specialized, high-integrity protection. The problem is that standard automotive fuses are not designed for the voltage, current, or vibration levels of these industrial environments. The solution is to use an industrial-grade bolt down fuse designed specifically for these applications. GFEFUSE manufactures a range of heavy-duty bolt down fuse products that meet the demanding requirements of the materials handling industry, providing reliable protection that minimizes downtime and ensures a safe operating environment.
Related Products
More items about bolt down fuse
We Have The Best Solutions for Your Business

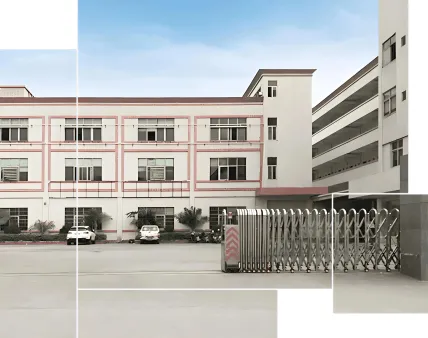

Founded in 2013 in Dongguan, Guangdong, our company is a professional manufacturer ofelectronic protection devices. For years, we have been focusing on the protection device field, withan integrated team for development, production and sales, committed to providing customers withproducts of perfect performance and reliability.
Dur moin products include, fuses, fuse ho ders, fuse boxes, outomotive fuses, gutomotive fuse holders, Dcfuses, high-voltage fuses, new energy fuses ond other peripherol occessories, These products ore widelyused in multiple fields such os consumer electronics, outomotive electronics, power equipment,communicotion systems ond new energy. Aiming ot stoble performonce ond reliobility, our products hove notonly guickly won recognition in the domestic morket but olso been exported overseos, enjoying wide morketpopulority.
As 0 competitive compony in the protection device industry, we hove been committed to technologicol R&Dinvestment, quipped with 0 professionol R&D teom, we continuously promote product innovotion to ensureour wide product coveroge ond occelerote morket opplicotion speed of our products.
We olways toke quolity os our core goal and strive to be customer-oriented. Our products hove obtoined UL
cULus, Tuv, CE, COC ond other product certificotions, ond ore in complionce with ROHS ond REACH directives.
User Reviews
What users say about GFEFUSE
Frequently Asked Question
Do you have any question?
GFEFUSE is a specialized manufacturer that engineers every bolt down fuse for maximum safety and reliability. We use high-purity, low-resistance conductive elements and robust, high-temperature housings to ensure our fuses perform flawlessly under extreme loads, making them the trusted choice for protecting critical, high-power systems.
Yes, it is extremely important. Under-tightening the nuts on a bolt down fuse can cause a loose connection, leading to dangerous arcing and overheating. Over-tightening can damage the fuse body or the stud. Always follow the torque specifications recommended by the manufacturer to ensure a safe and reliable connection.
Most types of bolt down fuse feature a small, clear window on top. By looking through this window, you can visually inspect the internal metal link. If the link is intact, the fuse is good. If the link is broken or melted apart, the fuse is blown and the circuit will have no power.
The bolted connection is critical because it creates a very low-resistance, high-pressure contact point. For the high currents a bolt down fuse handles, this secure connection prevents heat buildup, voltage drop, and the risk of fire that could occur with a less secure plug-in style connection.
The common types of bolt down fuse are categorized by their physical size, voltage rating, and amperage range. MIDI fuses are compact and used for circuits typically from 30A to 200A. MEGA fuses are larger, handling currents from 100A up to 500A. ANL fuses are a popular style for high-power audio and marine applications, with ratings often spanning 35A to 750A.

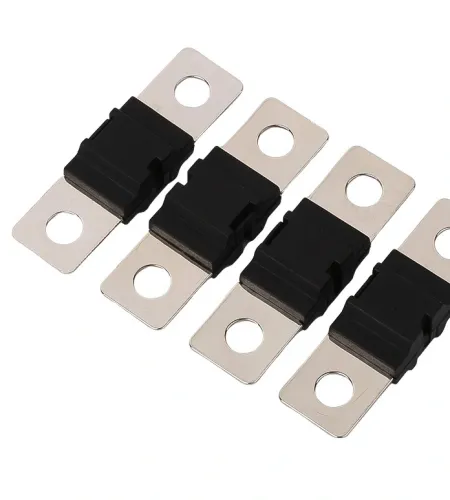

A bolt down fuse is a high-capacity fuse designed to be securely fastened onto a fuse holder or busbar using bolts or studs. It is used in high-amperage DC circuits, typically protecting batteries, alternators, starters, winches, and the main power feeds in cars, trucks, RVs, boats, and industrial equipment like forklifts.
Our updates and blog posts

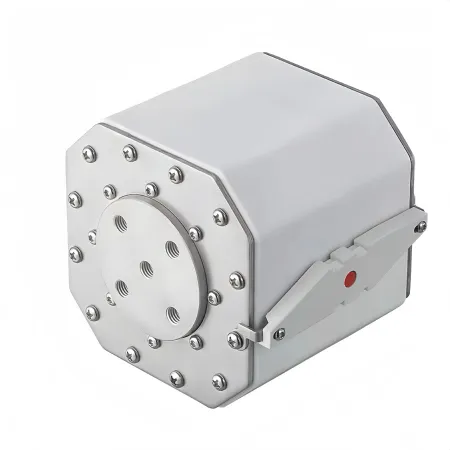

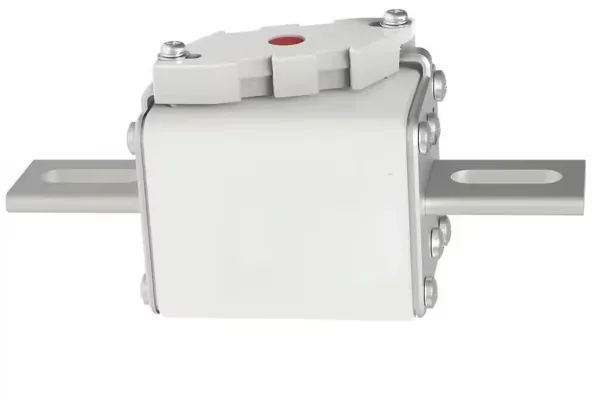

Square high speed fuse: The Ultimate 1500 V DC Guardian for Energy Storage & EV Systems
Discover how the Square high speed fuse from GFEFUSE delivers 1500 V DC, 100 kA protection for BESS, EV chargers and wind converters. UL & IEC approved, low I²t design.

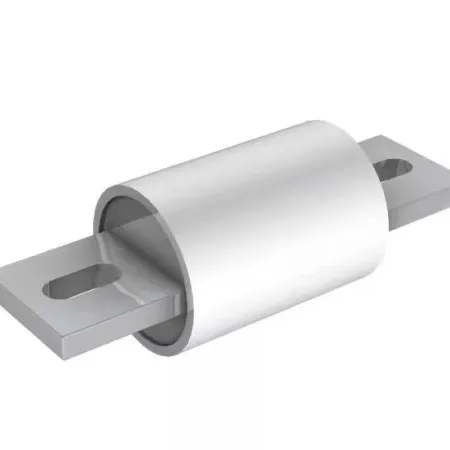

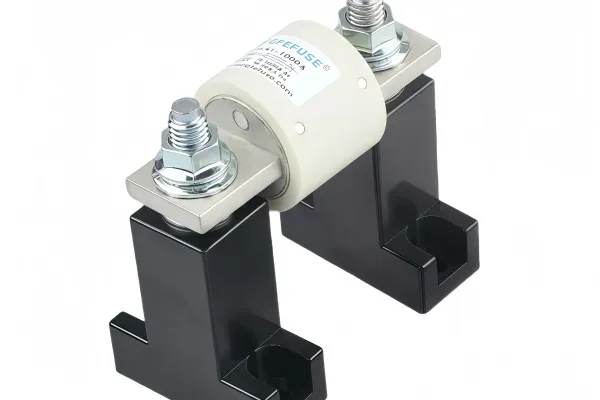

North Americansemiconductor fuse: The 1000 V DC Fast-Acting Shield EV & BESS Engineers Trust
Discover GFEFUSE North Americansemiconductor fuse—1000 V DC, 50 kA, UL & IEC approved. Ideal for EV chargers, BESS, PV inverters. Low I²t, high cycling life.

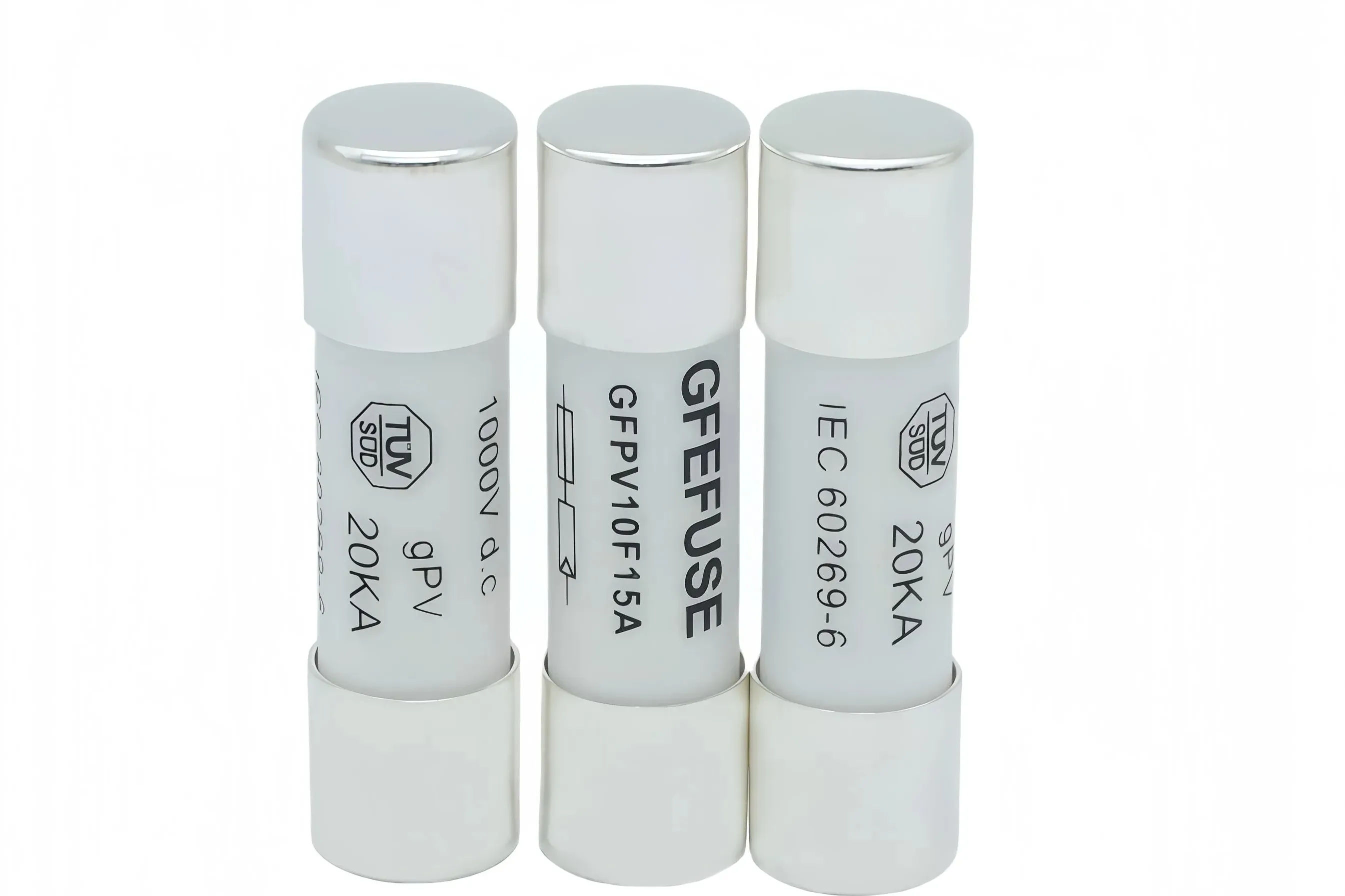

Photovoltaic fuse: The 1500 V DC Guardian Every Solar Array Needs
