"Looking for a fuse solution for a 48V DC power system."
As DC system voltages increase in applications like golf carts, solar energy, and telecommunications, the demands on the protective devices also change. The problem is that a fuse rated only for 12V or 32V may not be able to safely extinguish the electrical arc that forms in a higher voltage system when it blows. You must use a fuse specifically rated for your system's voltage. The solution is to check the specifications carefully. GFEFUSE manufactures bolt down fuse options with higher DC voltage ratings, ensuring they are suitable and safe for use in 48V and other non-standard voltage systems, providing reliable protection across a wider range of applications.
"What fuse should I use for my electric winch or hydraulic pump?"
Electric winches and hydraulic pumps have powerful motors that experience massive but temporary current spikes, known as inrush current, when they start up under load. The problem is that a standard, fast-acting fuse might blow unnecessarily during these normal start-ups, while a fuse that is too large won't protect against a true short circuit. The solution is to use a heavy-duty bolt down fuse, often an ANL style, which is designed for these demanding applications. GFEFUSE produces ANL fuses with time-delay characteristics that can withstand these temporary inrush currents without nuisance blowing, while still providing fast protection against a dangerous overload, making them the perfect bolt down fuse for your heavy-duty accessories.
"Choosing the right fuse for my RV's battery bank and inverter."
Your RV's battery bank and power inverter are a significant investment and the heart of your off-grid electrical system. The problem is that a major short circuit in this high-power system could be catastrophic, leading to equipment destruction and a severe fire risk. You must protect this system with a main fuse. The best solution is a bolt down fuse with a high interrupting capacity, installed on the main positive cable coming off your battery bank. A GFEFUSE ANL or MEGA bolt down fuse is the ideal choice, providing the robust protection needed to instantly and safely shut down the power in a worst-case scenario, protecting you and your investment.
"My fuse terminal looks burnt and discolored. What happened?"
If the terminal or stud where your bolt down fuse is mounted appears burnt, blackened, or melted, you are seeing the direct result of a loose connection. The problem is that even a slightly loose nut creates a point of high electrical resistance. When hundreds of amps flow through this resistance, it generates an immense amount of heat, which can destroy the fuse, the holder, and surrounding wires. The solution is to always ensure the nuts on your bolt down fuse are tightened to the manufacturer's specified torque using a torque wrench. When replacing a damaged fuse and holder, choosing a high-quality GFEFUSE bolt down fuse with clean, precisely machined terminals will ensure you can achieve a solid, low-resistance connection that prevents this dangerous overheating.
Related Products
More items about bolt down fuse
We Have The Best Solutions for Your Business

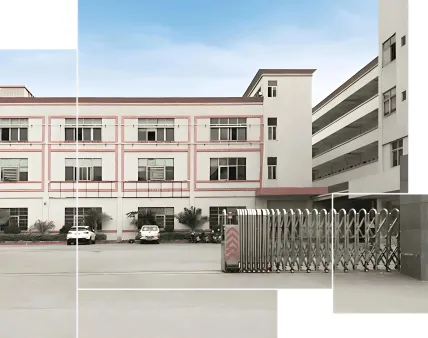

Founded in 2013 in Dongguan, Guangdong, our company is a professional manufacturer ofelectronic protection devices. For years, we have been focusing on the protection device field, withan integrated team for development, production and sales, committed to providing customers withproducts of perfect performance and reliability.
Dur moin products include, fuses, fuse ho ders, fuse boxes, outomotive fuses, gutomotive fuse holders, Dcfuses, high-voltage fuses, new energy fuses ond other peripherol occessories, These products ore widelyused in multiple fields such os consumer electronics, outomotive electronics, power equipment,communicotion systems ond new energy. Aiming ot stoble performonce ond reliobility, our products hove notonly guickly won recognition in the domestic morket but olso been exported overseos, enjoying wide morketpopulority.
As 0 competitive compony in the protection device industry, we hove been committed to technologicol R&Dinvestment, quipped with 0 professionol R&D teom, we continuously promote product innovotion to ensureour wide product coveroge ond occelerote morket opplicotion speed of our products.
We olways toke quolity os our core goal and strive to be customer-oriented. Our products hove obtoined UL
cULus, Tuv, CE, COC ond other product certificotions, ond ore in complionce with ROHS ond REACH directives.
User Reviews
What users say about GFEFUSE
Frequently Asked Question
Do you have any question?
GFEFUSE is a specialized manufacturer that engineers every bolt down fuse for maximum safety and reliability. We use high-purity, low-resistance conductive elements and robust, high-temperature housings to ensure our fuses perform flawlessly under extreme loads, making them the trusted choice for protecting critical, high-power systems.
Yes, it is extremely important. Under-tightening the nuts on a bolt down fuse can cause a loose connection, leading to dangerous arcing and overheating. Over-tightening can damage the fuse body or the stud. Always follow the torque specifications recommended by the manufacturer to ensure a safe and reliable connection.
Most types of bolt down fuse feature a small, clear window on top. By looking through this window, you can visually inspect the internal metal link. If the link is intact, the fuse is good. If the link is broken or melted apart, the fuse is blown and the circuit will have no power.
The bolted connection is critical because it creates a very low-resistance, high-pressure contact point. For the high currents a bolt down fuse handles, this secure connection prevents heat buildup, voltage drop, and the risk of fire that could occur with a less secure plug-in style connection.
The common types of bolt down fuse are categorized by their physical size, voltage rating, and amperage range. MIDI fuses are compact and used for circuits typically from 30A to 200A. MEGA fuses are larger, handling currents from 100A up to 500A. ANL fuses are a popular style for high-power audio and marine applications, with ratings often spanning 35A to 750A.

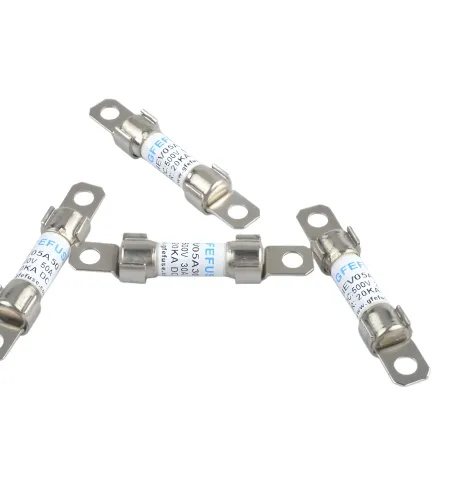

A bolt down fuse is a high-capacity fuse designed to be securely fastened onto a fuse holder or busbar using bolts or studs. It is used in high-amperage DC circuits, typically protecting batteries, alternators, starters, winches, and the main power feeds in cars, trucks, RVs, boats, and industrial equipment like forklifts.
Our updates and blog posts

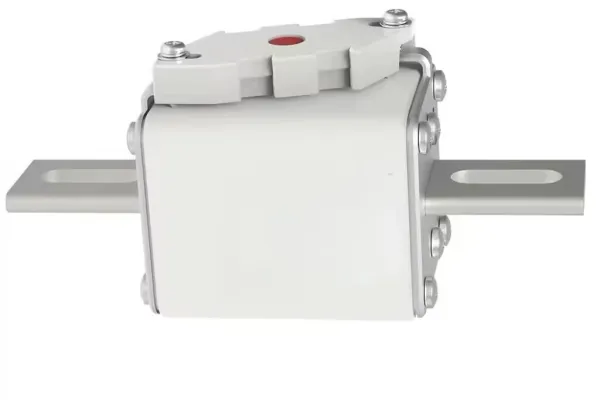

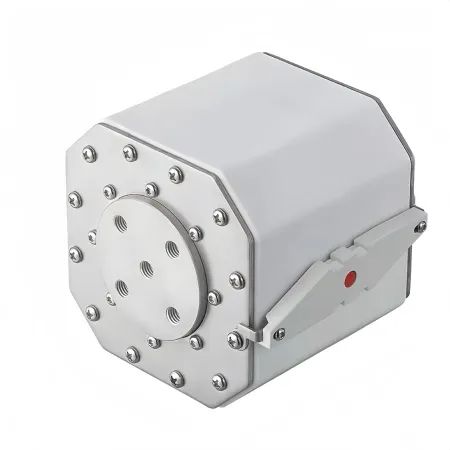

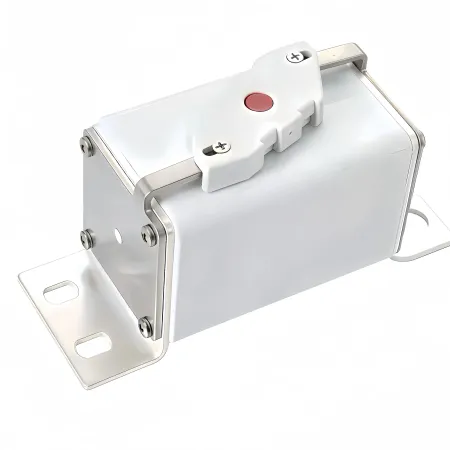

Square high speed fuse: The Ultimate 1500 V DC Guardian for Energy Storage & EV Systems
Discover how the Square high speed fuse from GFEFUSE delivers 1500 V DC, 100 kA protection for BESS, EV chargers and wind converters. UL & IEC approved, low I²t design.

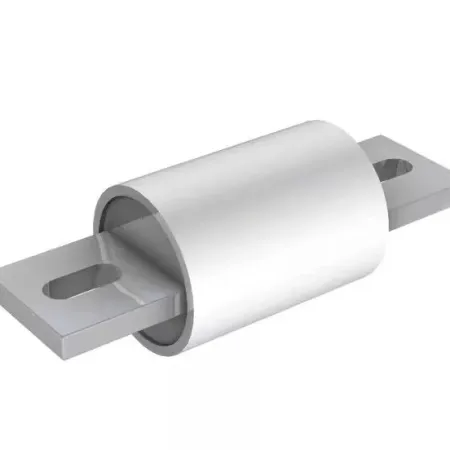

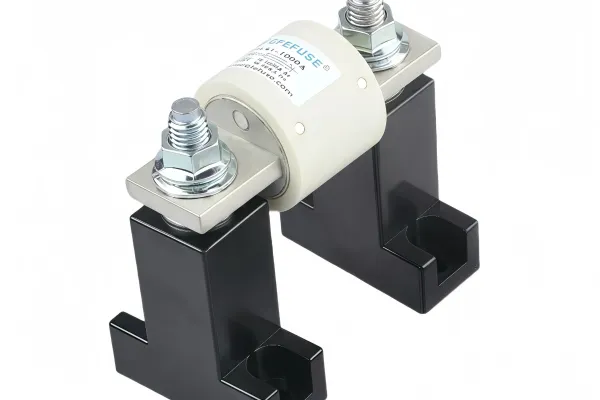

North Americansemiconductor fuse: The 1000 V DC Fast-Acting Shield EV & BESS Engineers Trust
Discover GFEFUSE North Americansemiconductor fuse—1000 V DC, 50 kA, UL & IEC approved. Ideal for EV chargers, BESS, PV inverters. Low I²t, high cycling life.

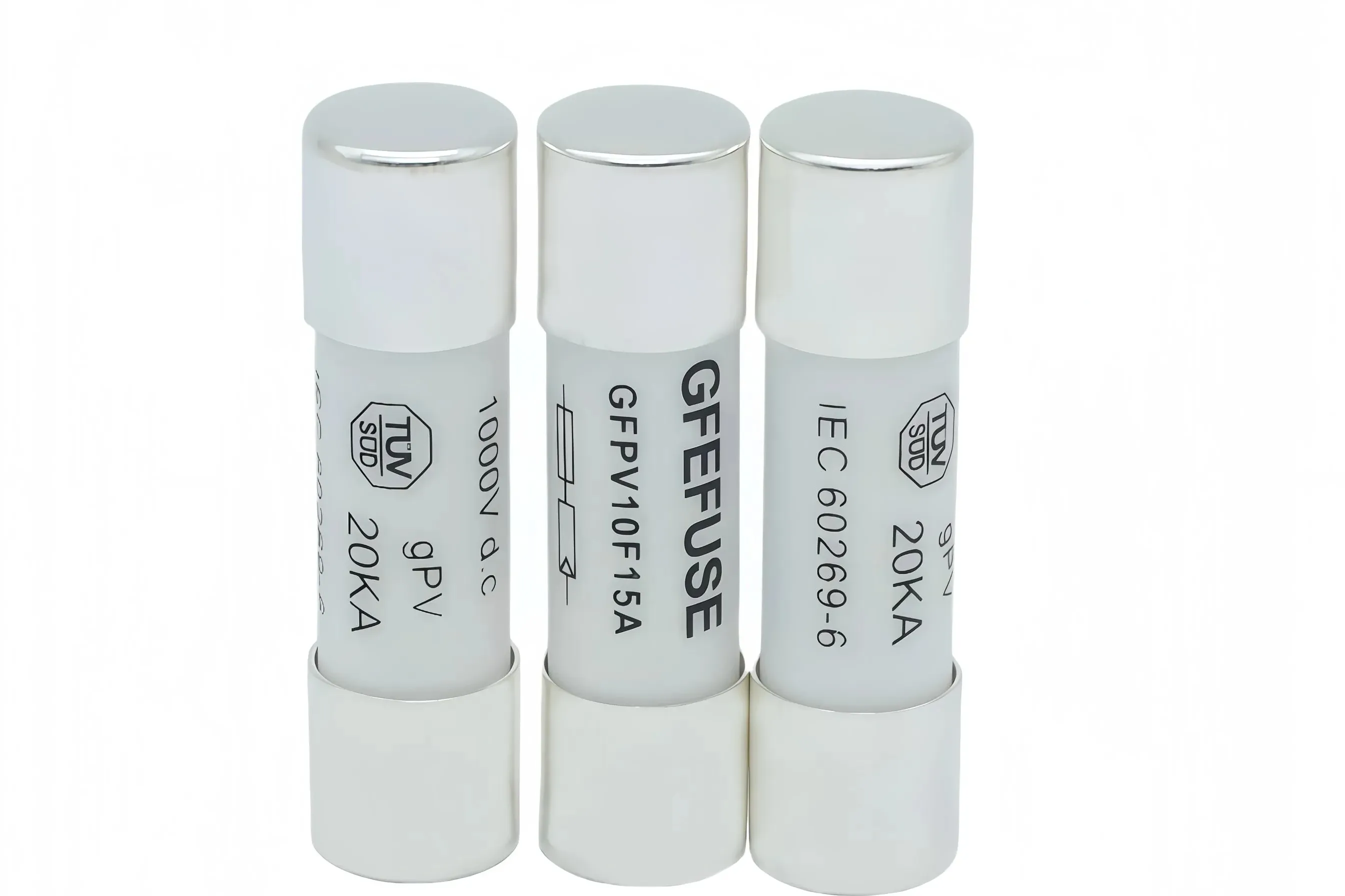

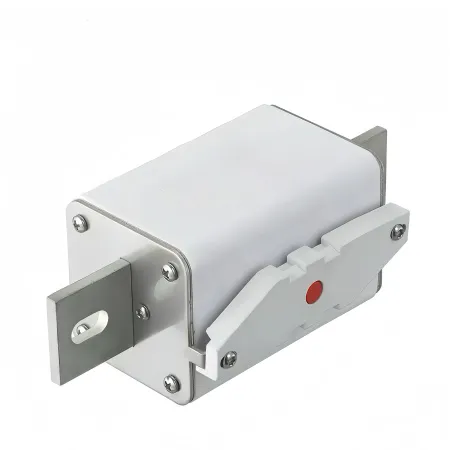

Photovoltaic fuse: The 1500 V DC Guardian Every Solar Array Needs
