"Choosing the right fuse for my RV's battery bank and inverter."
Your RV's battery bank and power inverter are a significant investment and the heart of your off-grid electrical system. The problem is that a major short circuit in this high-power system could be catastrophic, leading to equipment destruction and a severe fire risk. You must protect this system with a main fuse. The best solution is a bolt down fuse with a high interrupting capacity, installed on the main positive cable coming off your battery bank. A GFEFUSE ANL or MEGA bolt down fuse is the ideal choice, providing the robust protection needed to instantly and safely shut down the power in a worst-case scenario, protecting you and your investment.
"My equipment uses a square body bolt-down fuse. Where can I find a replacement?"
You are likely dealing with a high-speed or specialized industrial fuse often found protecting semiconductor devices like inverters and variable frequency drives (VFDs). The problem is that these are not as common as standard automotive fuses and require a replacement with very specific electrical characteristics. The solution is to source from a specialized manufacturer that understands these industrial applications. While GFEFUSE's primary automotive bolt down fuse line focuses on MIDI/MEGA/ANL types, we also have expertise in high-voltage and new energy fuses. We recommend consulting our technical team with the specifications of your square body bolt down fuse to identify a suitable, safe, and reliable replacement from our broader catalog of protection devices.
"What fuse should I use for my electric winch or hydraulic pump?"
Electric winches and hydraulic pumps have powerful motors that experience massive but temporary current spikes, known as inrush current, when they start up under load. The problem is that a standard, fast-acting fuse might blow unnecessarily during these normal start-ups, while a fuse that is too large won't protect against a true short circuit. The solution is to use a heavy-duty bolt down fuse, often an ANL style, which is designed for these demanding applications. GFEFUSE produces ANL fuses with time-delay characteristics that can withstand these temporary inrush currents without nuisance blowing, while still providing fast protection against a dangerous overload, making them the perfect bolt down fuse for your heavy-duty accessories.
"What does 'interrupting capacity' or 'AIC' mean for a fuse?"
When you see a rating like "2,000 AIC" (Ampere Interrupting Capacity) on a bolt down fuse, it's a critical safety specification. The problem is that in a high-power system with a large battery, a short circuit can unleash a massive, almost explosive amount of energy. The interrupting capacity tells you the maximum fault current the fuse can safely extinguish without rupturing or failing itself. The solution is to always choose a fuse with an AIC rating that exceeds the maximum potential short-circuit current of your system. GFEFUSE designs its bolt down fuse products with high interrupting capacities, making them a safe choice for robust battery systems where this rating is paramount.
Related Products
More items about bolt down fuse
We Have The Best Solutions for Your Business
Founded in 2013 in Dongguan, Guangdong, our company is a professional manufacturer ofelectronic protection devices. For years, we have been focusing on the protection device field, withan integrated team for development, production and sales, committed to providing customers withproducts of perfect performance and reliability.
Dur moin products include, fuses, fuse ho ders, fuse boxes, outomotive fuses, gutomotive fuse holders, Dcfuses, high-voltage fuses, new energy fuses ond other peripherol occessories, These products ore widelyused in multiple fields such os consumer electronics, outomotive electronics, power equipment,communicotion systems ond new energy. Aiming ot stoble performonce ond reliobility, our products hove notonly guickly won recognition in the domestic morket but olso been exported overseos, enjoying wide morketpopulority.
As 0 competitive compony in the protection device industry, we hove been committed to technologicol R&Dinvestment, quipped with 0 professionol R&D teom, we continuously promote product innovotion to ensureour wide product coveroge ond occelerote morket opplicotion speed of our products.
We olways toke quolity os our core goal and strive to be customer-oriented. Our products hove obtoined UL
cULus, Tuv, CE, COC ond other product certificotions, ond ore in complionce with ROHS ond REACH directives.
User Reviews
What users say about GFEFUSE
Frequently Asked Question
Do you have any question?
GFEFUSE is a specialized manufacturer that engineers every bolt down fuse for maximum safety and reliability. We use high-purity, low-resistance conductive elements and robust, high-temperature housings to ensure our fuses perform flawlessly under extreme loads, making them the trusted choice for protecting critical, high-power systems.
Yes, it is extremely important. Under-tightening the nuts on a bolt down fuse can cause a loose connection, leading to dangerous arcing and overheating. Over-tightening can damage the fuse body or the stud. Always follow the torque specifications recommended by the manufacturer to ensure a safe and reliable connection.
Most types of bolt down fuse feature a small, clear window on top. By looking through this window, you can visually inspect the internal metal link. If the link is intact, the fuse is good. If the link is broken or melted apart, the fuse is blown and the circuit will have no power.
The bolted connection is critical because it creates a very low-resistance, high-pressure contact point. For the high currents a bolt down fuse handles, this secure connection prevents heat buildup, voltage drop, and the risk of fire that could occur with a less secure plug-in style connection.
The common types of bolt down fuse are categorized by their physical size, voltage rating, and amperage range. MIDI fuses are compact and used for circuits typically from 30A to 200A. MEGA fuses are larger, handling currents from 100A up to 500A. ANL fuses are a popular style for high-power audio and marine applications, with ratings often spanning 35A to 750A.

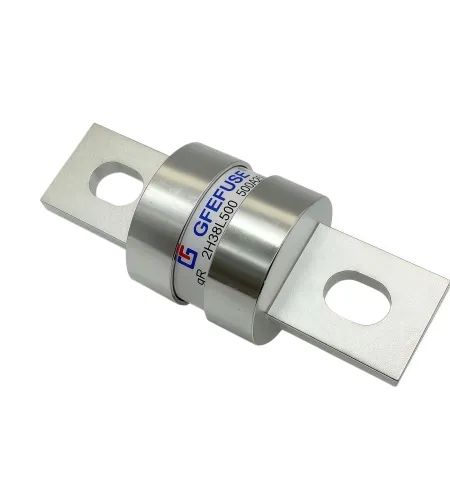

A bolt down fuse is a high-capacity fuse designed to be securely fastened onto a fuse holder or busbar using bolts or studs. It is used in high-amperage DC circuits, typically protecting batteries, alternators, starters, winches, and the main power feeds in cars, trucks, RVs, boats, and industrial equipment like forklifts.
